MANET / FANET
Solutions

MANET소개
shutterstock_2220444503 (1).jpg

MANET/FANET solutions allow multiple terminals(nodes) with ad-hoc interfaces to communicate in areas without fixed infrastructure through the formation of a mesh network.

Huneed's MANET/FANET solutions provide next-gen warfighter networks required for future battlefield scenarios. By connecting it to manned/unmanned complex combat systems, Huneed aims to develop and enhance battlefield communication structures.

MANET/FANET 제품군

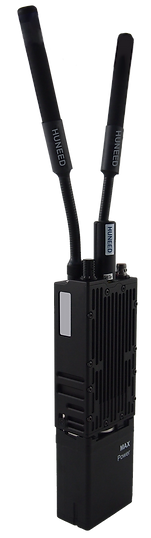

MANET HANDHELD RADIO

Based on SDR(Software Defined Radio) platforms, the MANET handheld radio is applicable in various operation scenarios.

[Key Features]

• Self-forming MANET IP Mesh network through

    multiple nodes

• Video and audio data transfer using P2P COFDM

• Dual onboard HD video encoder

• Onboard memory (SD card)

• Simplified Ethernet interface and dual Push-to

    -Talk (PTT) support

• Rugged body worn form factor for portability and

    convenience

휴니드_MANET Radio.png
Supported Standards
I/O

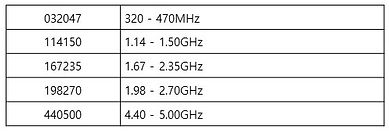

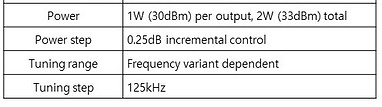

COFDM Transceivers

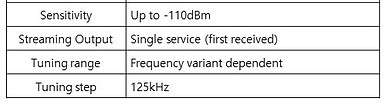

Receivers
Storage

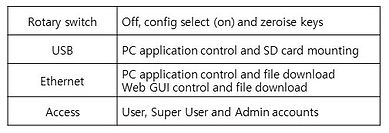

Control

SDR-M

The SDR-M is a miniature SDR transceiver designed specifically for UAV applications.



[Key Features]

• Offers output power up to 2x200mW (frequency

    dependent)

• Wide range of IP Mesh and undirectional COFDM

    waveforms

• 2 USB interfaces capable of supporting USB cameras

    and headsets, as well as Wi-Fi, cellular and Ethernet

    dongles

• USB RNDIS connectivity

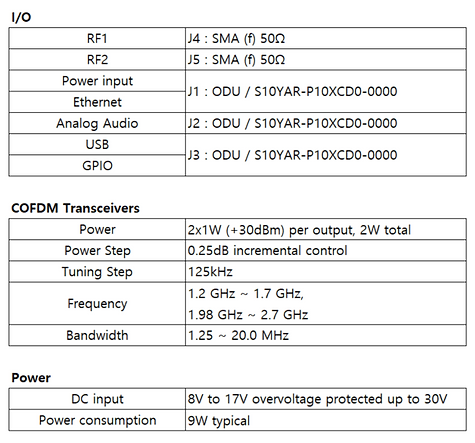

I/O
COFDM Transceivers

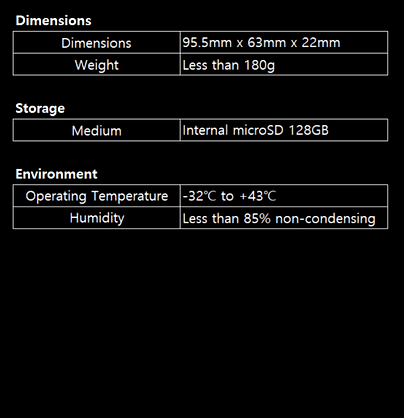

Dimensions
Storage
Environmental

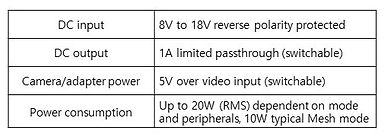

Power
Control

NETNode

With its wide area configuration and large data delivery, the NETNode enables an enhanced network environment for complex manned and unmanned combat systems.



[Key Features]

• Dual HD video encoder and MIMO data transfer

• Can connect up to 144 individual nodes depending on IP

    setting

• Internal GPS, SDI video input, composite video input

    supported

• 64GB onboard storage(store and forward capabilities)

• Form factor design for outdoor and transportable use

Interfaces
IP interface.jpg
IP Interface

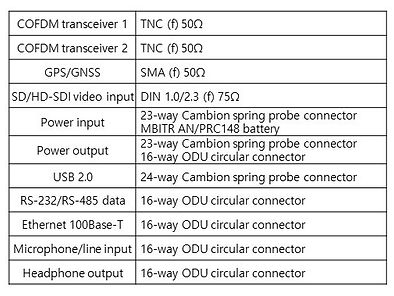

RF Interfaces
RF interfaces.jpg
RF and Modulation.jpg
RF and Modulation
Typical Range.jpg
Typical Range
